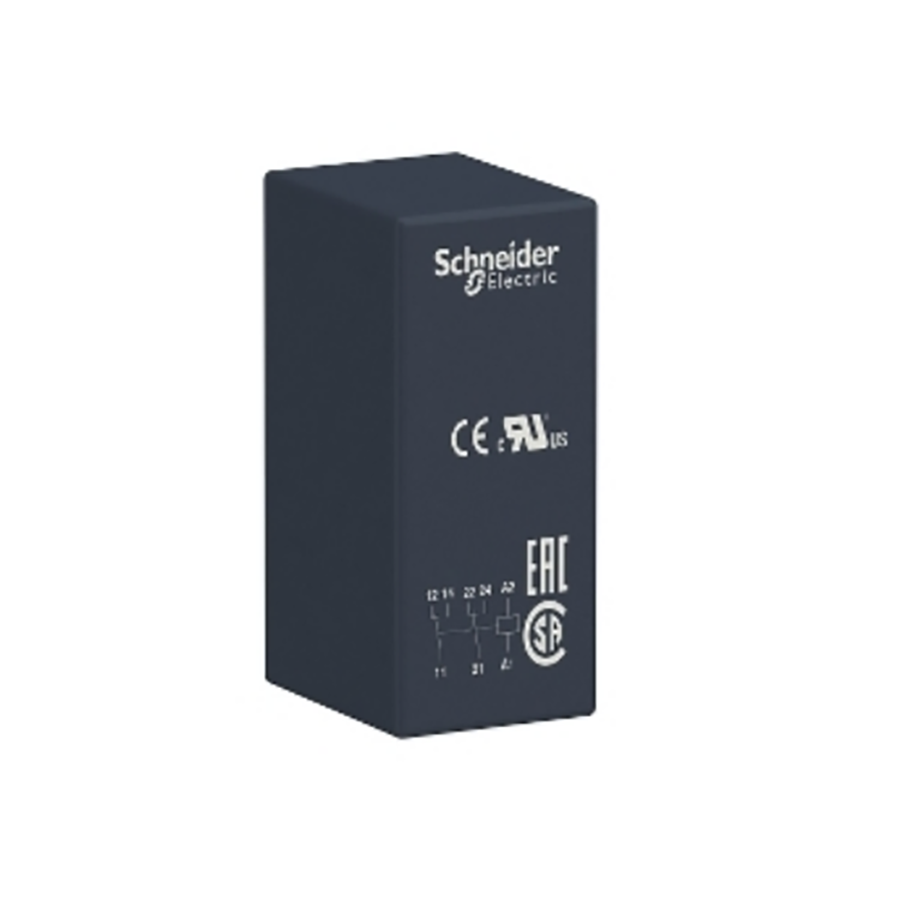

RSB2A080B7
Manufacturer:
Schneider Electric
Mfr.Part #:
RSB2A080B7
Datasheet:
Description:
Power Relays Socketable 65.2 mA General Purpose
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Width | 12.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 15.7 mm |
| Packaging | Box |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Coil Current | 65.2 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 8 A |
| Termination Style | Plug In |
| Switching Voltage | 250 VAC, 28 VDC |
| Coil Voltage (AC) | 24 V |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 3.6 V |
Stock: 20
Distributors
pcbx
pcbxUnit Price$4.97483
Ext.Price$4.97483
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.97483 | $4.97483 |
| 10 | $4.23019 | $42.30190 |
| 25 | $4.13217 | $103.30425 |
| 50 | $4.03643 | $201.82150 |
| 100 | $3.94293 | $394.29300 |
| 300 | $3.78636 | $1135.90800 |
| 500 | $3.63601 | $1818.00500 |
| 1000 | $3.51120 | $3511.20000 |
